Tube Swaging Machine

HOREN INDUSTRIAL CO., LTD.

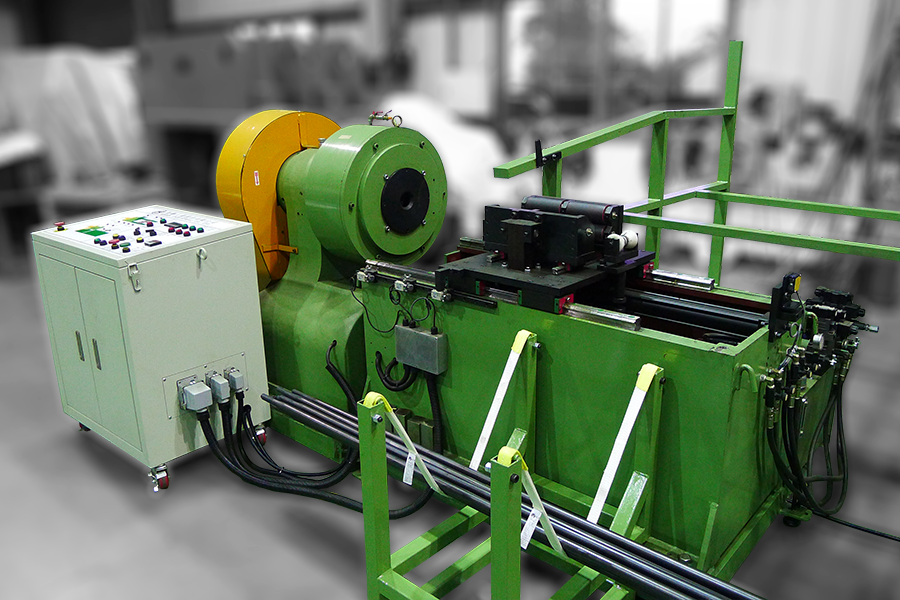

Tube Swaging Machine

SM15AP


 HOREN, a leading ODM manufacturer, specializes in various types of cold forging machinery. Our Tube Swaging Machine is designed to provide exceptional performance and precision in tube processing. With a powerful 15HP x 6P motor, it can handle brass, aluminium, steel alloy tubes, rods, and bars. The applicable size range extends from Ø15mm to Ø50mm, and the working range spans from 3mm to 10mm (subject to variation based on material hardness and thickness).

Our Tube Swaging Machine is commonly used for pre-processing cold drawing operations, facilitating smooth pulling through drawing dies. It is equipped with a hydraulic feeding system that enhances processing stability and offers the option for automation, optimizing efficiency and productivity. Additionally, it excels in forging materials and achieving the desired sloping shape required for finishing or semi-finishing hardware accessories.

Experience the reliability and versatility of HOREN's Tube Swaging Machine for your cold forging needs. Elevate your manufacturing capabilities with our top-quality machinery.

Tube Swaging Machine

Motor: 15HP x 6P

Applicable material: brass, aluminium, steel alloy tube, rod and bar

Applicable size: Ø15~50mm

Working range: 3~10mm (Reduction ratio may be varied depending on the hardness and thickness of the material)

Applications and features: 1. Commonly used as the pre-processing of the cold drawing to go through the drawing die for pulling.
2. Equipped with the hydraulic feeding system that improves the processing stability and provides the option for automation.
3. Used to forge the material and obtain the sloping shape required to make the finishing or semi-finishing hardware accessories.
