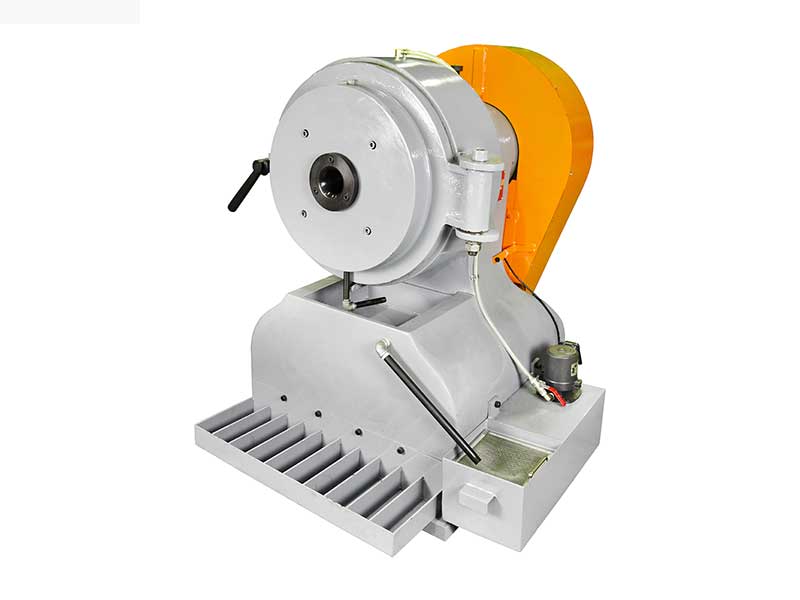

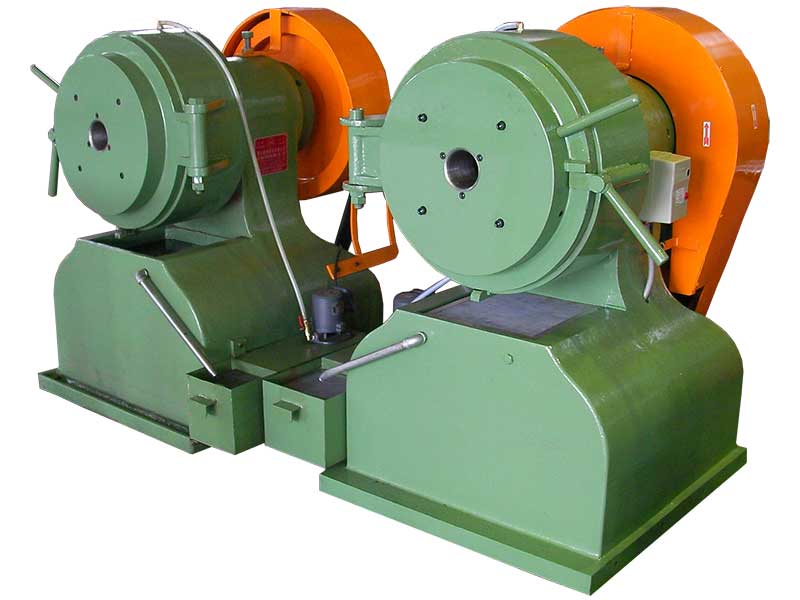

Rotary Swage Machine

SM15


HOREN, a renowned manufacturer, specializes in various types of cold forging machinery. Our Rotary Swage Machine is designed to deliver superior performance and precision in metal processing. With a powerful 15HP x 6P motor, it is capable of handling brass, aluminium, steel alloy tubes, rods, and bars. The applicable size range extends from Ø15mm to Ø50mm, and the working range spans from 3mm to 10mm (subject to variation based on material hardness and thickness).

Our Rotary Swage Machine is commonly used for pre-processing cold drawing operations, facilitating smooth pulling through drawing dies. It excels in strengthening the density of round materials through the hammering process in swaging mode. Additionally, it offers the capability to clad other rod materials and forge metals to achieve the desired sloping shape required for finishing or semi-finishing hardware accessories.

Experience the efficiency and precision of HOREN's Rotary Swage Machine for your cold forging needs.

Rotary Swage Machine


Motor: 15HP x 6P

Applicable material: brass, aluminium, steel alloy tube, rod and bar

Applicable size: Ø15~50mm

Working range: 3~10 mm (Reduction ratio may be varied depending on the hardness and thickness of the material)

Applications and features: 1. Commonly used as the pre-processing of the cold drawing to go through the drawing die for pulling.
2. Used for strengthening the density of round material through hammering process on swaging mode, or cladding the other rod materials.
3. Used to forge the material and obtain the sloping shape required to make the finishing or semi-finishing hardware accessories.
