Tube Draw Machine


Tube Draw Machine

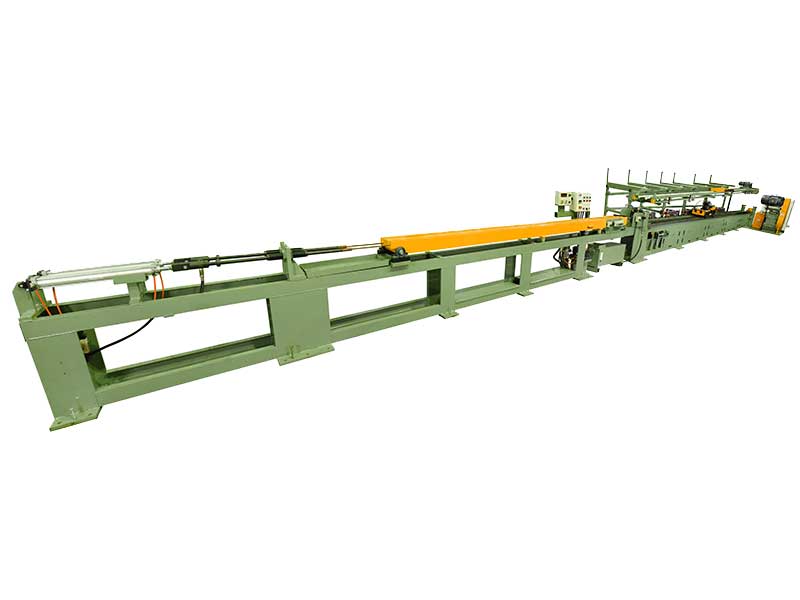

 Our Tube Draw Machine is designed to meet the diverse needs of the industry. With a powerful 50HP motor, it is capable of processing various materials such as brass, aluminium, steel, and alloy tubes and bars. The applicable sizes range from Ø75-50mm to Ø50-35mm, offering flexibility in production.

The machine features a seesaw-type drawbench with a chain-driven carriage, ensuring precise and accurate pulling of rolled or extruded tubes. Cold drawing at room temperature provides precise dimensions, improved surface quality, and enhanced material properties such as hardness, yield strength, and tensile strength.

Equipped with a tube pushing machine and PLC, it optimizes the mandrel insertion and collection process, reducing working time. The machine allows for multiple passes of cold drawing, enabling the transformation of round materials into various shapes required for industrial applications.

Customization options are available for pulling force, speed, and drawing length to accommodate specific material compositions and process requirements. Trust HOREN's Tube Draw Machine for superior performance and efficiency in cold forging processes.

Tube Draw Machine

Motor: 50HP
Applicable material: brass, aluminium, steel and alloy tube and bar
Applicable size: Ø75-50mm / Ø50-35mm
Working range: 15~30%
Applications and features: 1. Seesaw-type drawbench with the chain-driven carriage to pull out the rolled or extruded tubes for better precision.
2. Cold drawn materials provide precise size on diameter, wall thickness, and brighter surface at room temperature.
3. Cold drawn materials improve the hardness, reduce the duductility, and increase the yield and tensile strength of the material.
4. With assistance from the tube pushing machine and PLC, it effectively reduces the working time on mandrel insertion and collection for cold drawn tubes.
5. By carrying out multiple passes of cold drawing, it is capable to draw deductible round materials to various shapes for industrial use.
6. Pulling force, speed, and drawing length could be custom-made according to the practical process deriving from the material composition.
Relevant working processes: Extrusion, tube forming, cold rolling, pickling, coating, heat treatment, cutting, bending, straightening
